02 / 09
KEY FEATURES
- Nominal-rated pleated polypropylene depth medium
- Graded-porosity sequential particle capture
- Integrated outer pre-filter layers
- High contaminant-holding capacity
- Extended service life
- Low differential pressure
Puretratech · F-PT89KCPPPN
Nominal-Rated Polypropylene Depth Capsule Filter — Process water
Nominal-Rated Polypropylene Depth Capsule Filter for Process water. Its construction, retention rating and operating limits are the same as the base model PT89KCPPPN.
Application field: FSterilizing grade: No
Request a quote

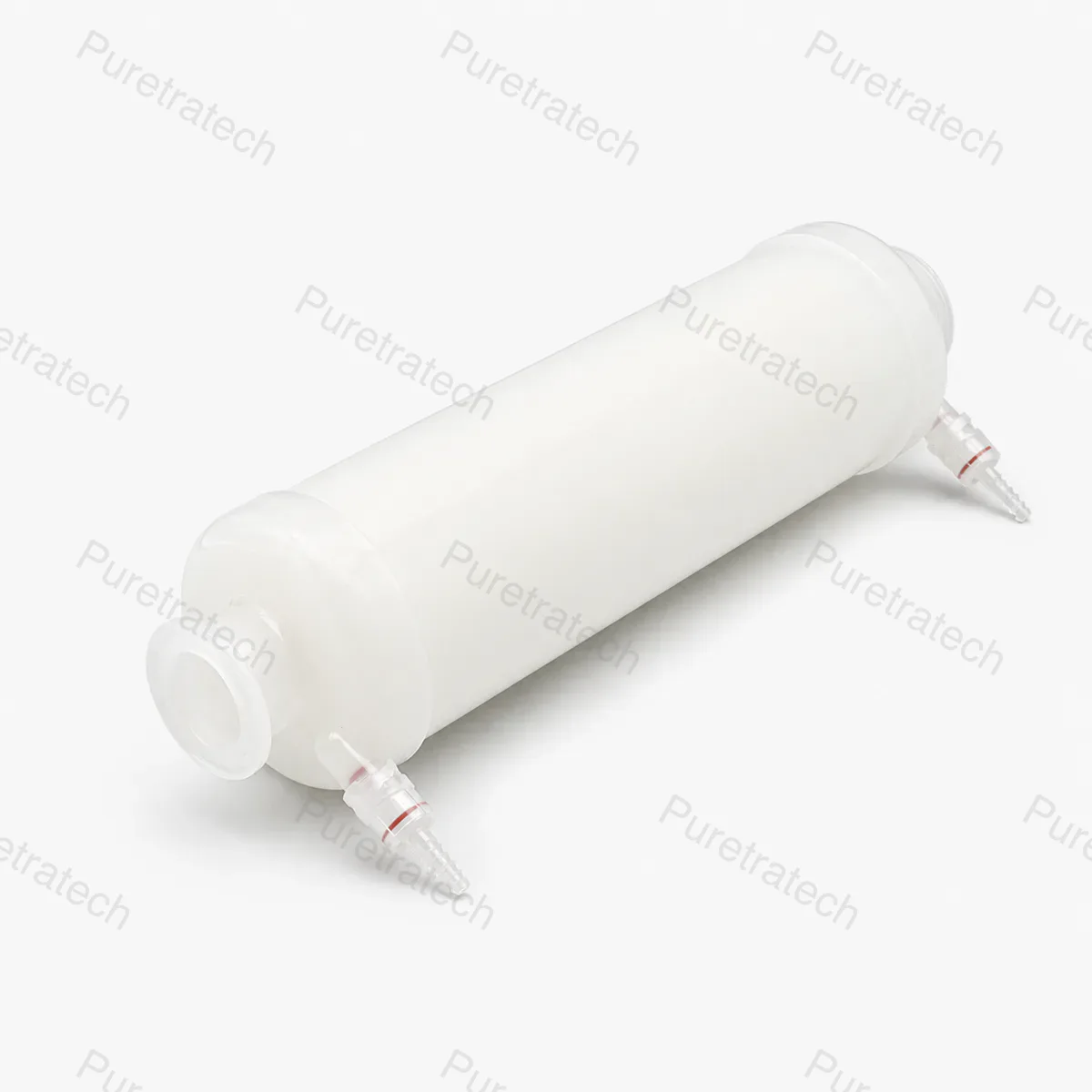

View larger image01 / 07SKU / ModelF-PT89KCPPPN
MOQ12 pcs
Lead time20 days
Country of originChina
HS code8421999090
Support / warranty3 years
01 / 09
PRODUCT OVERVIEW
Nominal-Rated Polypropylene Depth Capsule Filter for Process water. Its construction, retention rating and operating limits are the same as the base model PT89KCPPPN.
If you are considering this product for Process water, confirm process-fluid compatibility, retention rating, operating conditions and any sterilization or sanitization requirements before ordering.
This full-size nominal-rated capsule filter is designed for industrial-fluid clarification and pre-filtration.
Its graded-porosity pleated polypropylene medium captures larger particles in open outer layers and smaller particles in tighter inner layers.
03 / 09
APPLICATIONS
- Process water
04 / 09
MATERIALS
| Component | Material / method |
|---|---|
| Filter membrane | Nominal-rated polypropylene (PP) depth medium |
| Media support | Polypropylene (PP) |
| End caps | Polypropylene (PP) |
| Inner core | Polypropylene (PP) |
| Outer cage | Polypropylene (PP) |
05 / 09
BIOLOGICAL SAFETY
All materials meet the biological-safety requirements of USP Class VI at 121 °C for plastics.
06 / 09
FOOD SAFETY COMPLIANCE
Materials of construction comply with FDA regulations for food and beverage contact use, as detailed in Title 21 of the U.S. Code of Federal Regulations (21 CFR). Materials used to produce the filter media and hardware are safe for use in contact with foodstuffs in accordance with EU 10/2011.
07 / 09
CAPSULE INTEGRITY
Minimum burst pressure: 123.5 psi (8.5 barg)
08 / 09
AUTOCLAVABLE & SANITIZABLE
- Capsules can be autoclaved up to 25 times at 125 °C for 30 minutes, chemically sanitized in situ with commonly used sanitizing agents, or sanitized with 90 °C hot water for a limited duration depending on time and temperature.
- Capsules must not be steam sterilized in situ.
09 / 09
Product Configuration / Ordering Information
| Product number / model | Pore size | Length | Fittings | Vent | Drain |
|---|---|---|---|---|---|
| F-PT89KCPPPN | 003=0.3µm | 03=2.5" | 1HT=1.5" TC | S=Stäubli | S=Stäubli |
| 006=0.6µm | 05=5" | MT=0.5" TC | H=Hose Barb | H=Hose Barb | |
| 010=1.0µm | 10=10" | 08H=1/2" Hose Barb | |||
| 030=3.0µm | 20=20" | 12H=3/4" Hose Barb | |||
| 050=5.0µm | 30=30" | 8N=1/2" NPT | |||
| 100=10µm | 40=40" | 8NF=1/2" NPT-F | |||
| 200=20µm | |||||
| 300=30µm | |||||
| 500=50µm |
