02 / 09
KEY FEATURES
- Nominal-rated polypropylene depth medium
- Graded-density particle capture
- High dirt-holding capacity
- Low initial pressure drop
- All-polypropylene thermal construction
- Clarification and pre-filtration duty
Puretratech · F-PT72KAPPPN

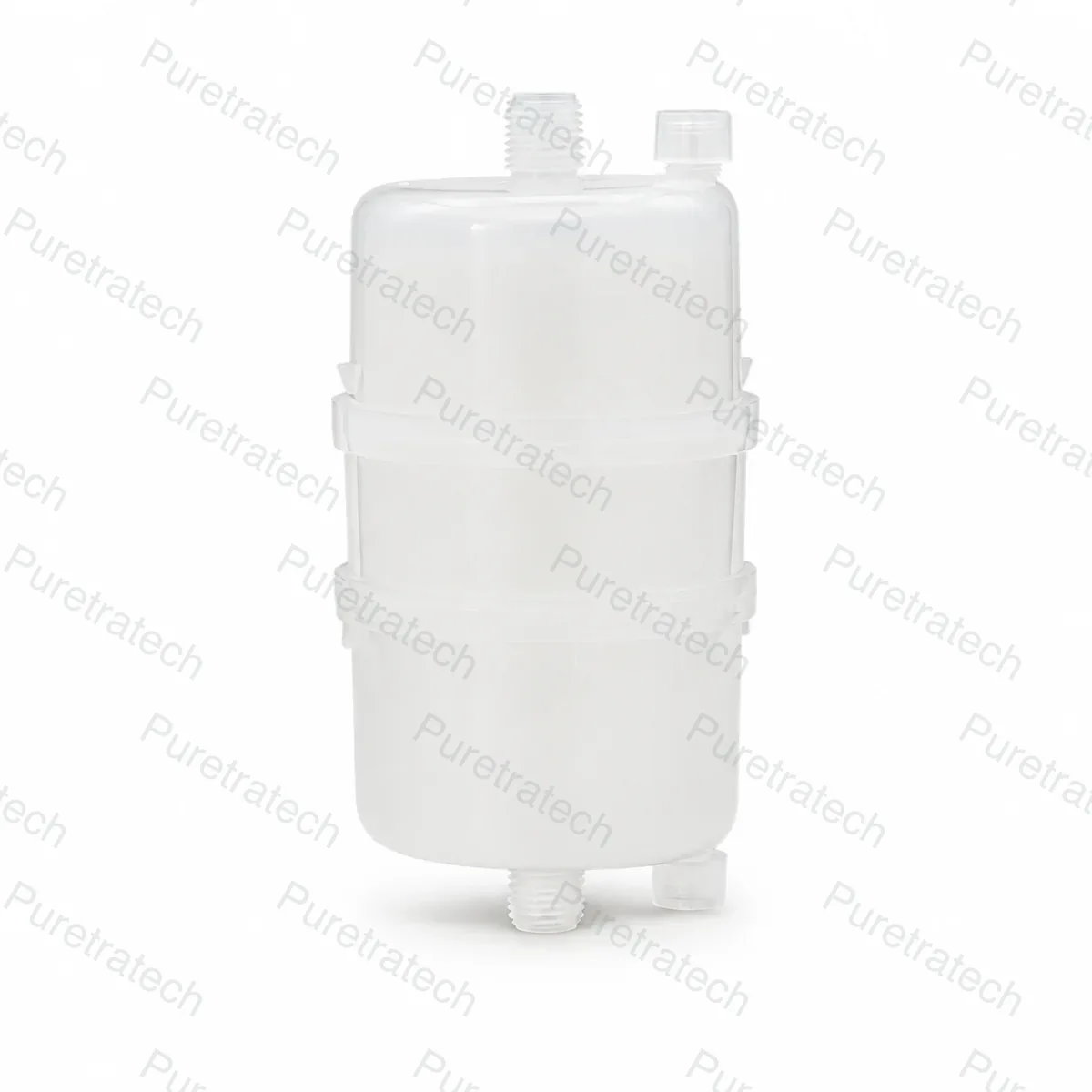

Nominal-Rated Polypropylene Depth Capsule Filter — Process-water clarification and pre-filtration
Nominal-Rated Polypropylene Depth Capsule Filter for Process-water clarification and pre-filtration. Its construction, retention rating and operating limits are the same as the base model PT72KAPPPN.
Application field: FSterilizing grade: No
Request a quote

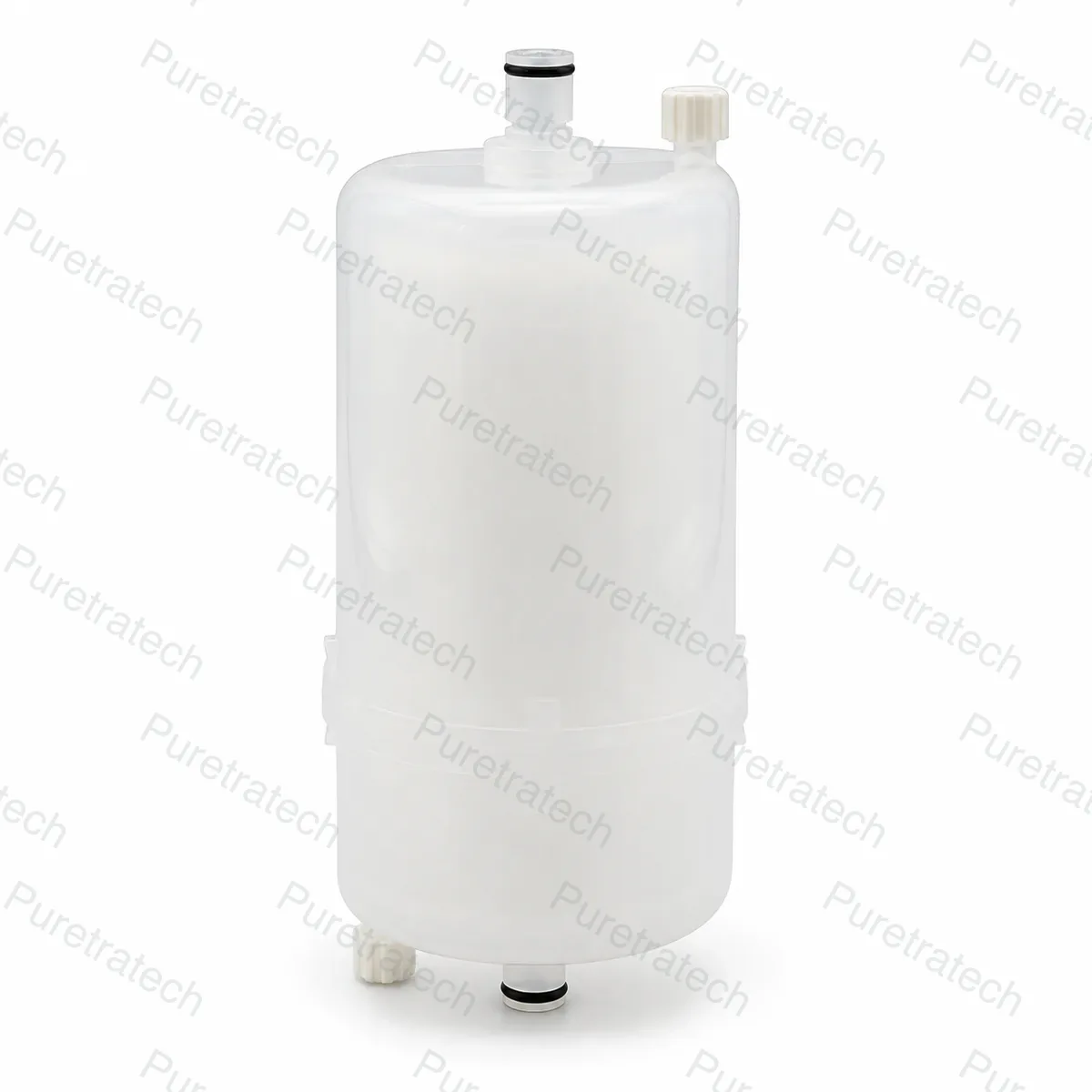

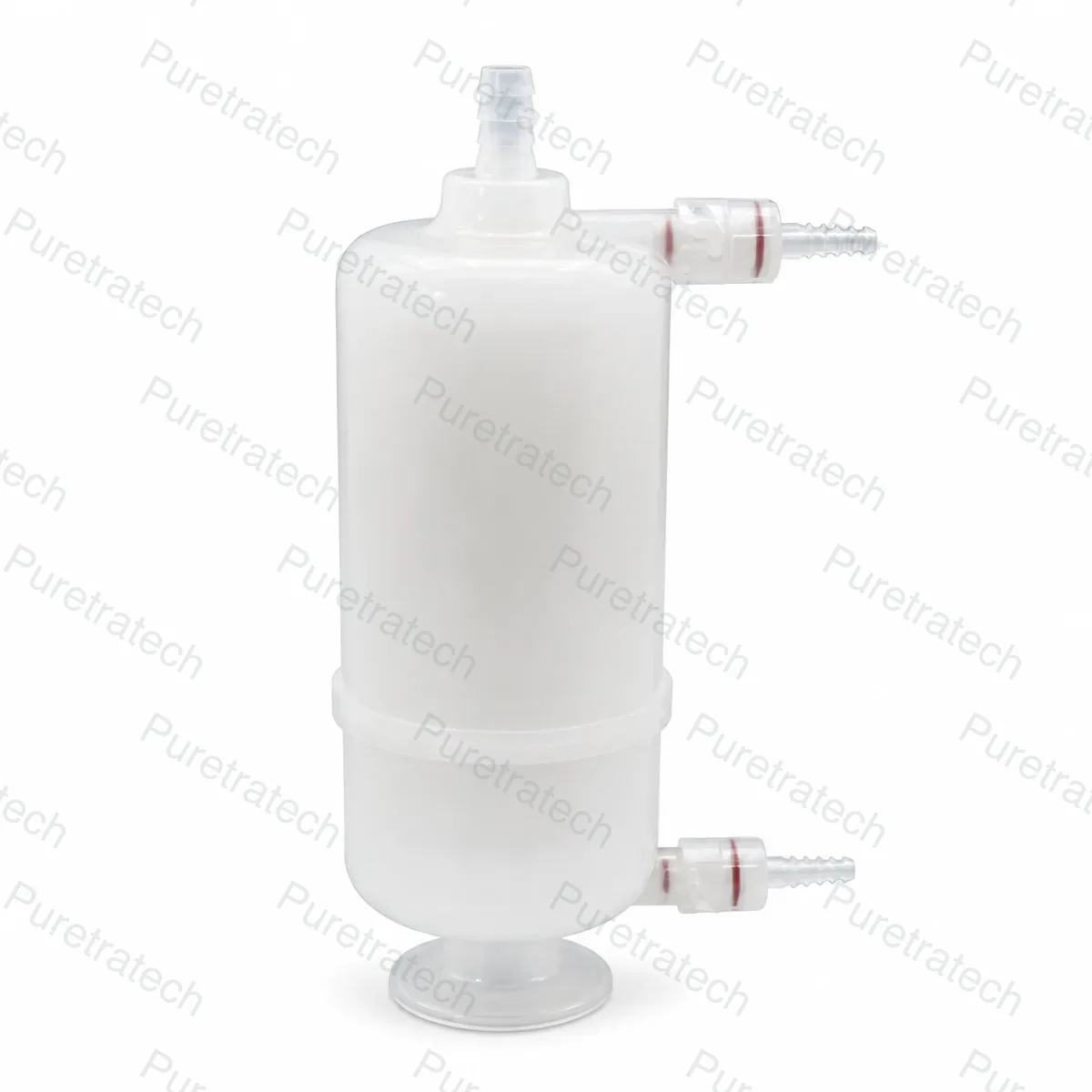

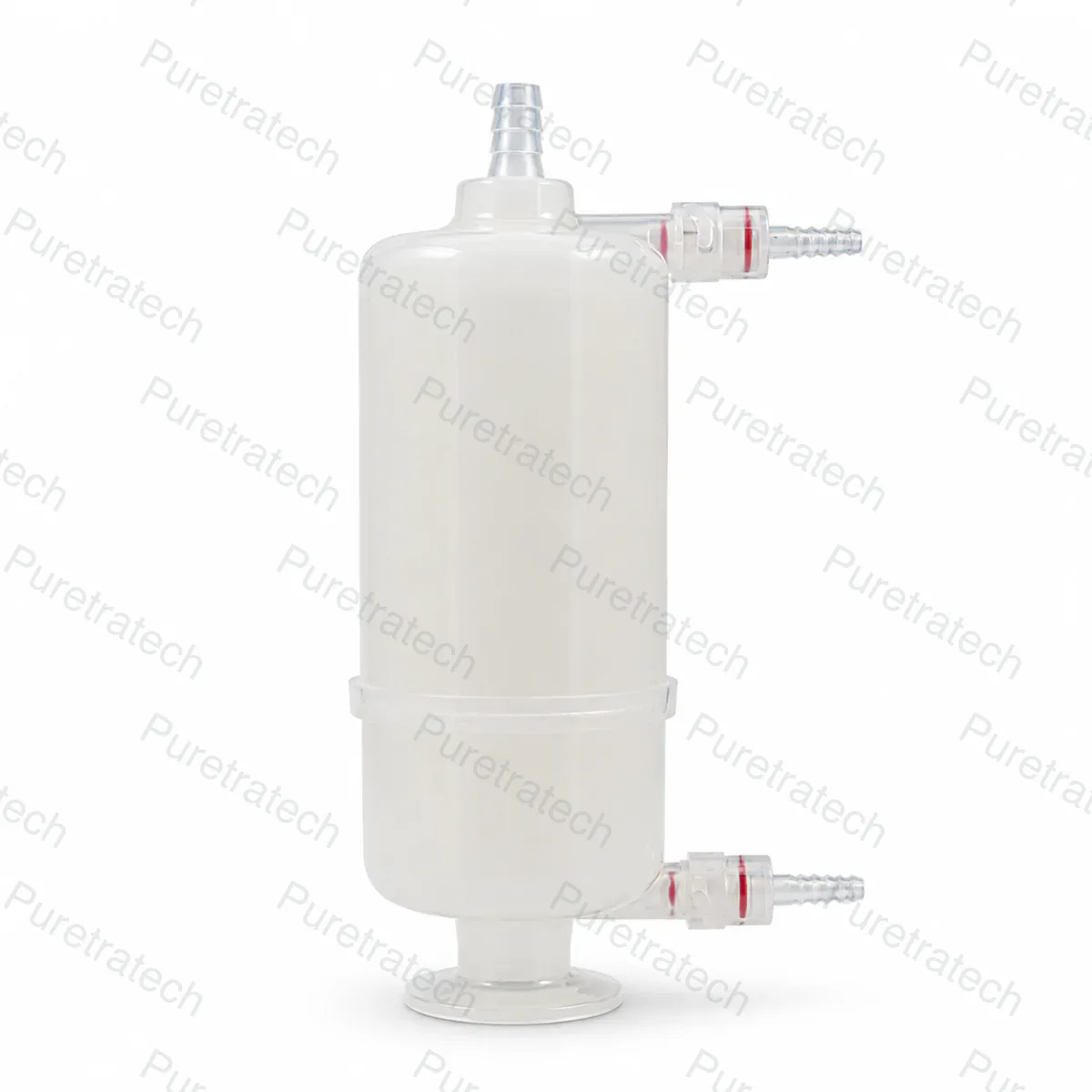

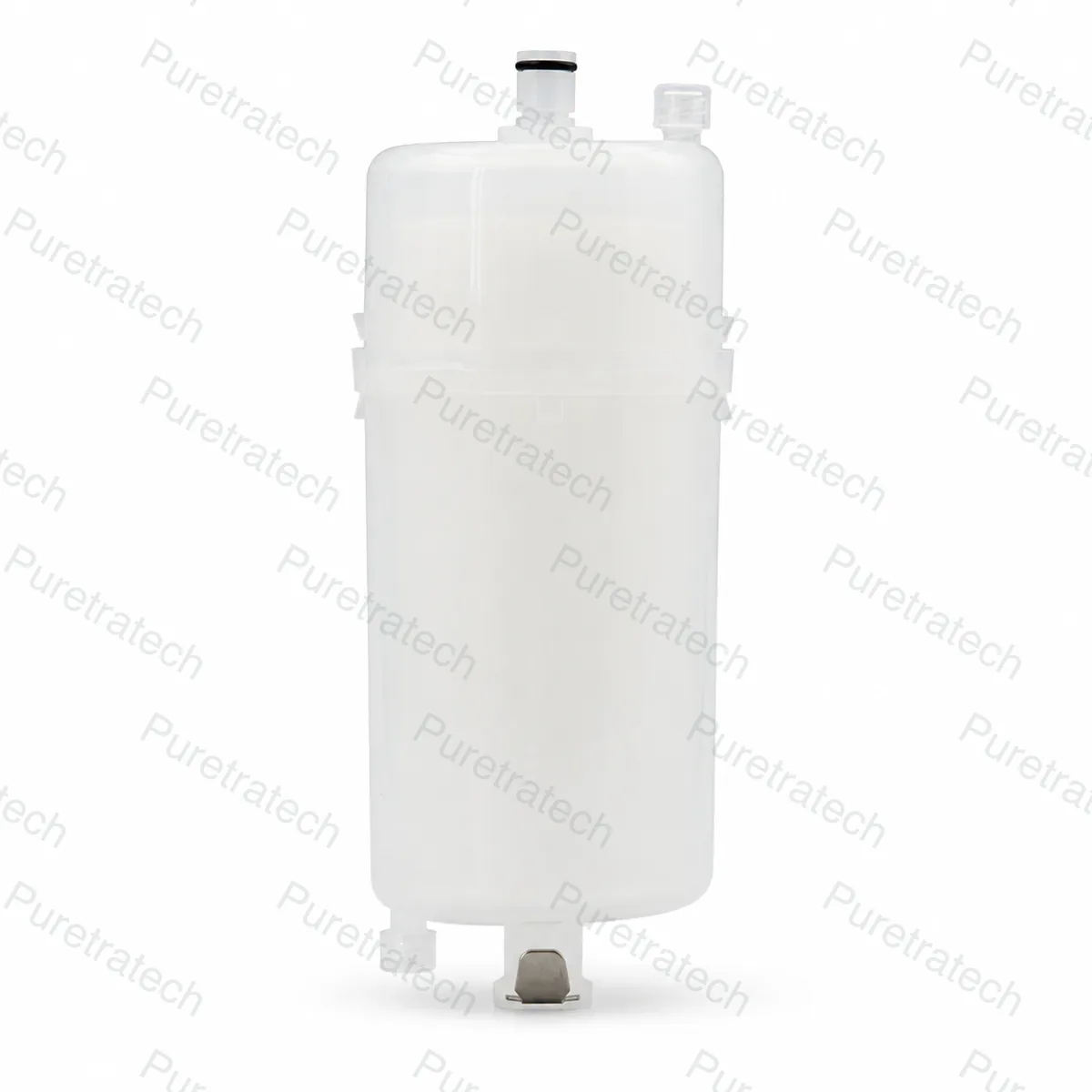

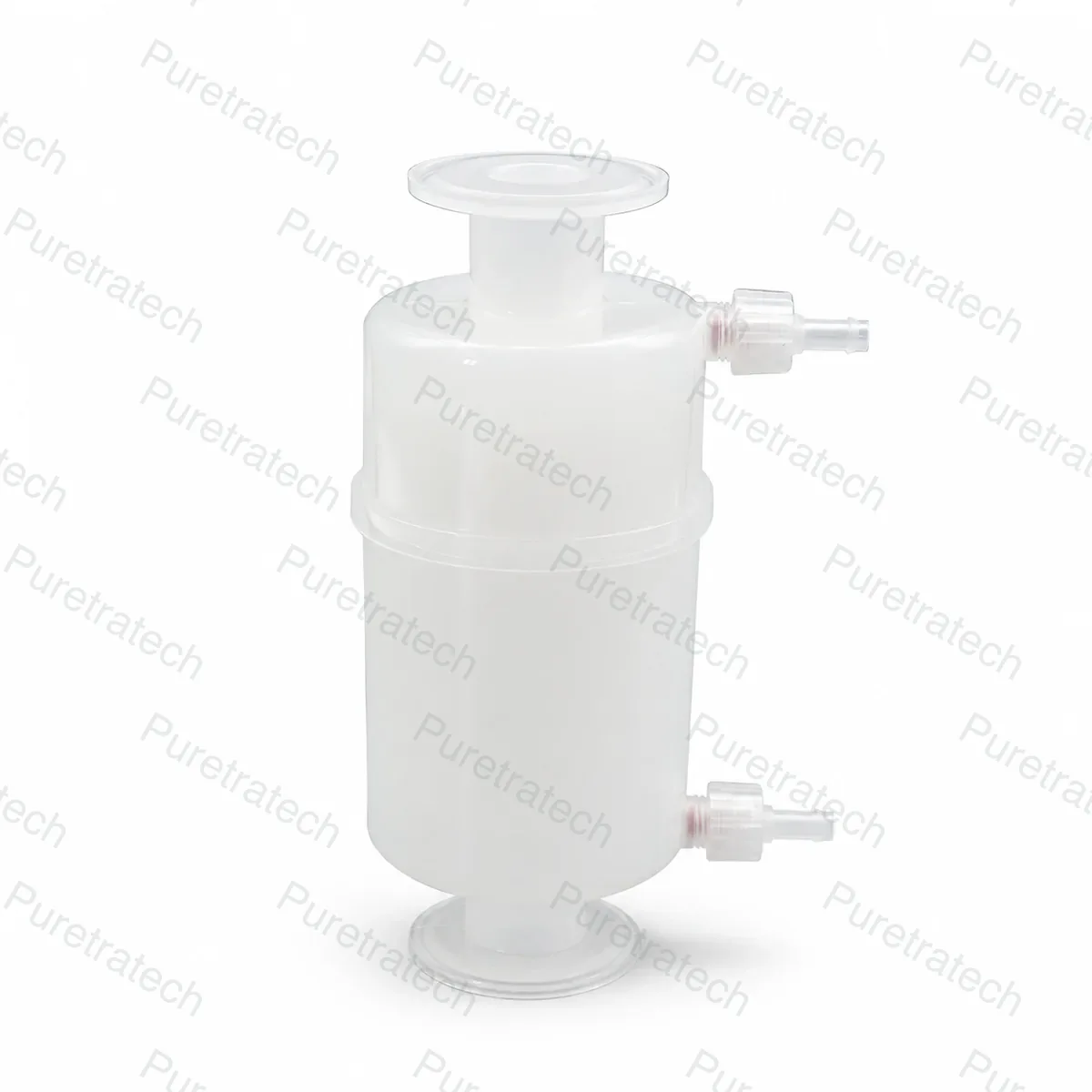

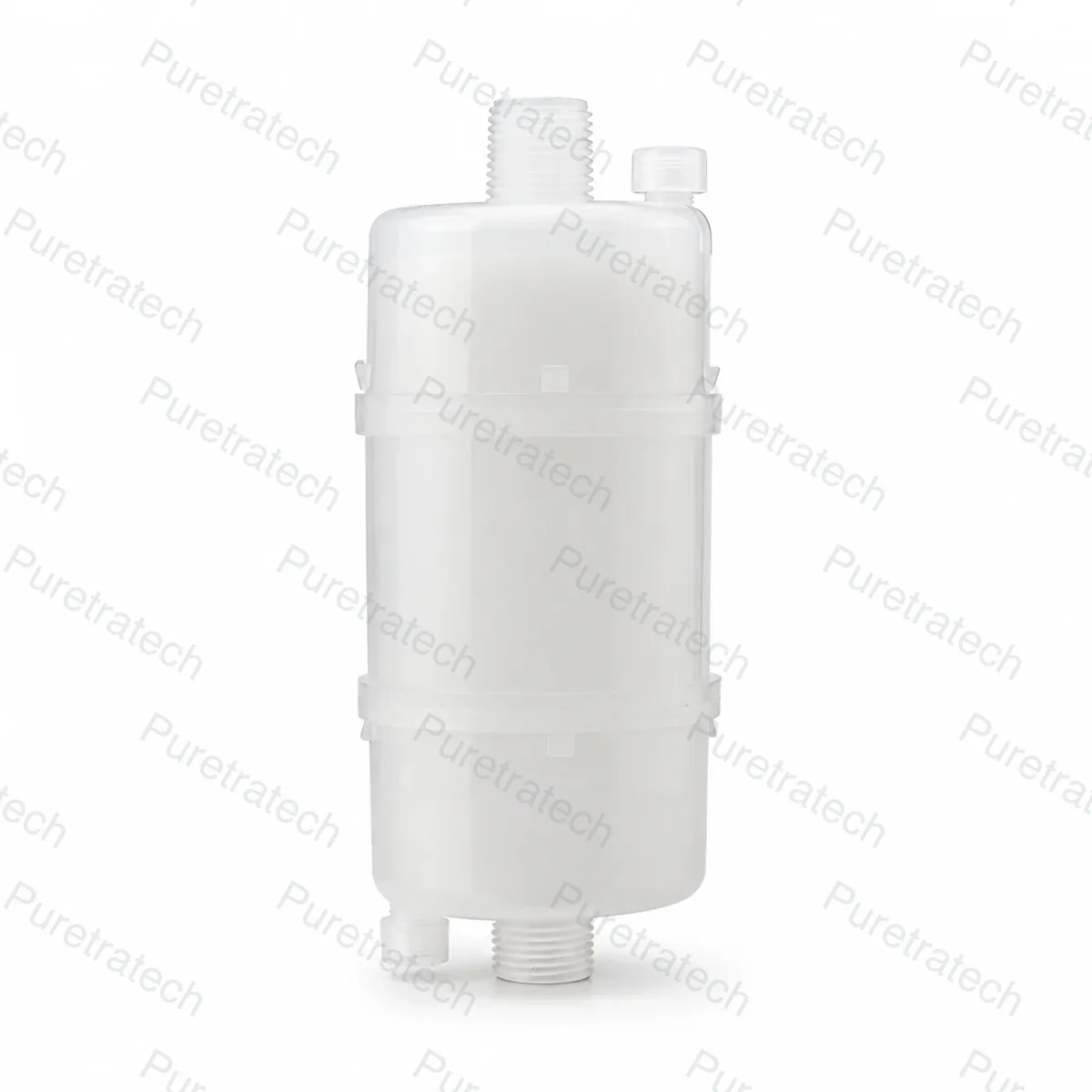

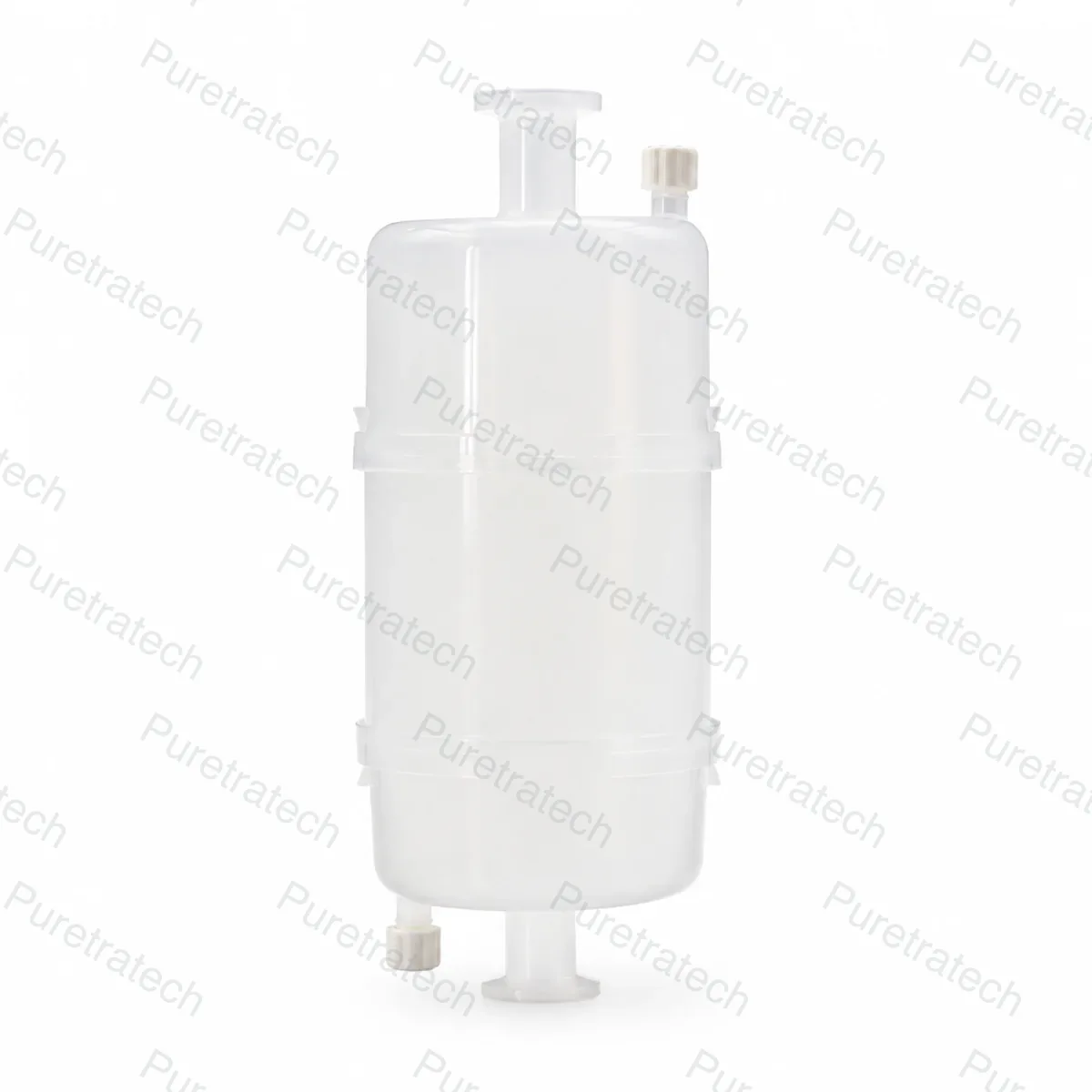

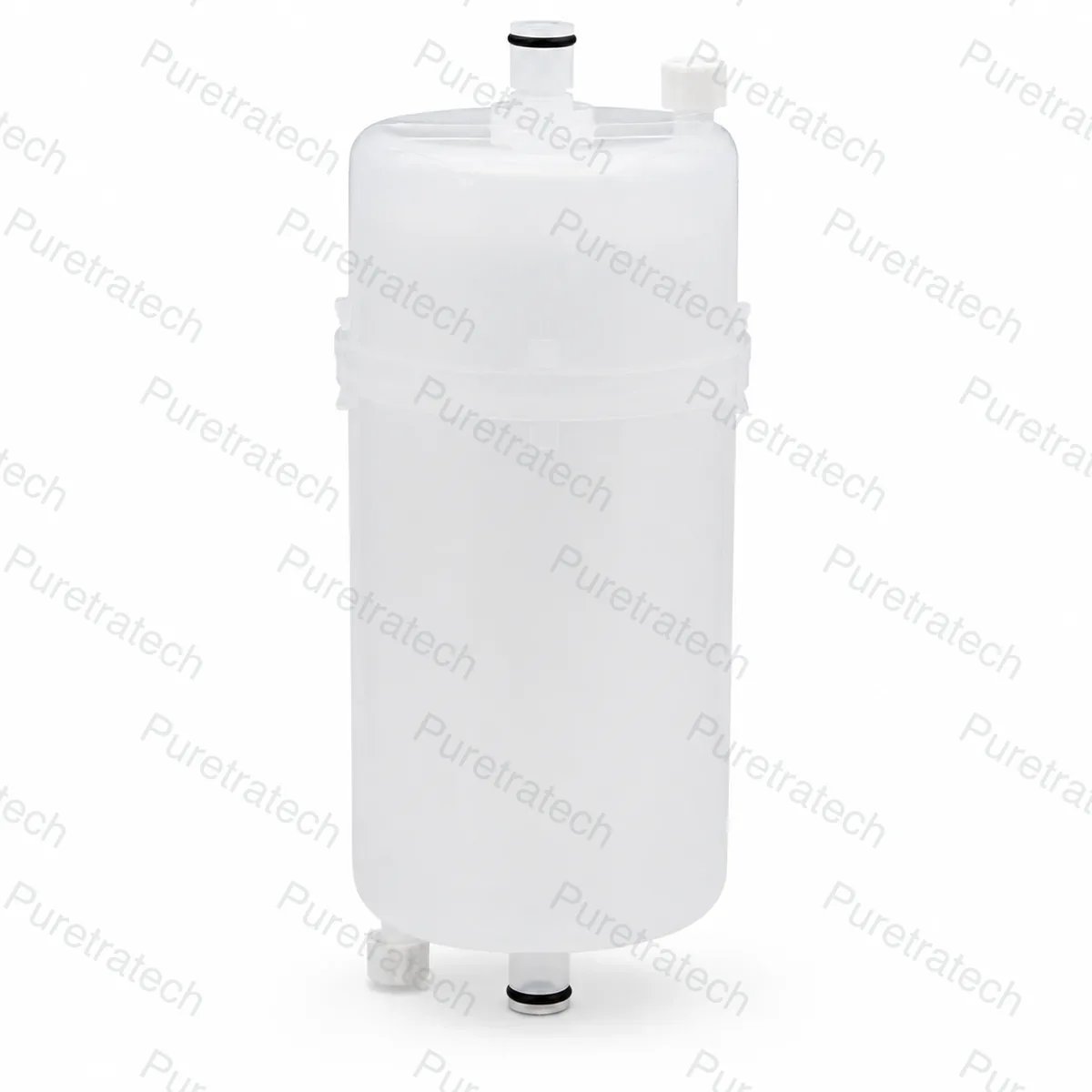

View larger image01 / 10SKU / ModelF-PT72KAPPPN
MOQ12 pcs
Lead time10 days
Country of originChina
HS code8421999090
Support / warranty3 years
01 / 09
PRODUCT OVERVIEW
Nominal-Rated Polypropylene Depth Capsule Filter for Process-water clarification and pre-filtration. Its construction, retention rating and operating limits are the same as the base model PT72KAPPPN.
If you are considering this product for Process-water clarification and pre-filtration, confirm process-fluid compatibility, retention rating, operating conditions and any sterilization or sanitization requirements before ordering.
The graded-density polypropylene depth matrix captures larger particles in open outer zones and progressively smaller particles in tighter inner zones.
Distributing solids through the media depth increases dirt capacity, limits surface blinding and extends service life in clarification and pre-filtration duties.
03 / 09
APPLICATIONS
- Process-water clarification and pre-filtration
04 / 09
MATERIALS
| Component | Material / method |
|---|---|
| Filter membrane | Nominal-rated polypropylene (PP) depth medium |
| Media support | Polypropylene (PP) |
| End caps | Polypropylene (PP) |
| Inner core | Polypropylene (PP) |
| Outer cage | Polypropylene (PP) |
05 / 09
BIOLOGICAL SAFETY
All components meet the biological-safety requirements of USP Class VI for plastics at 121 °C.
06 / 09
FOOD SAFETY COMPLIANCE
Materials of construction comply with applicable FDA regulations for food and beverage contact use, as detailed in Title 21 of the U.S. Code of Federal Regulations (21 CFR). Materials used for the filter media and hardware are suitable for food contact in accordance with EU 10/2011.
07 / 09
CAPSULE INTEGRITY
Minimum burst pressure: 123.5 psi (8.5 barg)
08 / 09
AUTOCLAVABLE & SANITIZABLE
- Autoclaving: up to 25 cycles at 125 °C for 30 minutes; alternatively, chemical sanitization in situ with commonly used sanitizing agents or hot-water sanitization at 90 °C for a limited duration determined by time and temperature.
- Do not steam sterilize in situ.
09 / 09
Product Configuration / Ordering Information
| Product number / model | Pore size | Length | Inlet | Outlet | Vent | Drain | Filling bell |
|---|---|---|---|---|---|---|---|
| F-PT72KAPPPN | 003=0.3µm | H=1.5 inch | 1T=1" TC | 1T=1" TC | S=Stäubli | S=Stäubli | B=Filling bell |
| 006=0.6µm | S=2.5 inch | MT=0.5" TC | MT=0.5" TC | H=Hose barb | H=Hose barb | ||
| 010=1.0µm | D=4 inch | M6H=3/8" multistep hose barb | 7H=1/2" hose barb | ||||
| 030=3.0µm | L=5 inch | 8NF=1/2" NPT-F | |||||
| 050=5.0µm | M6H=3/8" multiple hose barb | ||||||
| 100=10µm | |||||||
| 200=20µm | |||||||
| 300=30µm | |||||||
| 500=50µm |
